SGC Sand and Gravel Crusher
Sand and Gravel Crusher
SGC TECHNOLOGY
The SGC series was purpose-built for one job: producing sand and gravel with the lowest fines content and perfect grain shape.
A slow-running double roll crusher with gap adjustment and integrated overload protection.
Through innovative solutions in machine and control engineering, the grading curve can be flexibly adapted to specific requirements.
More target grain with

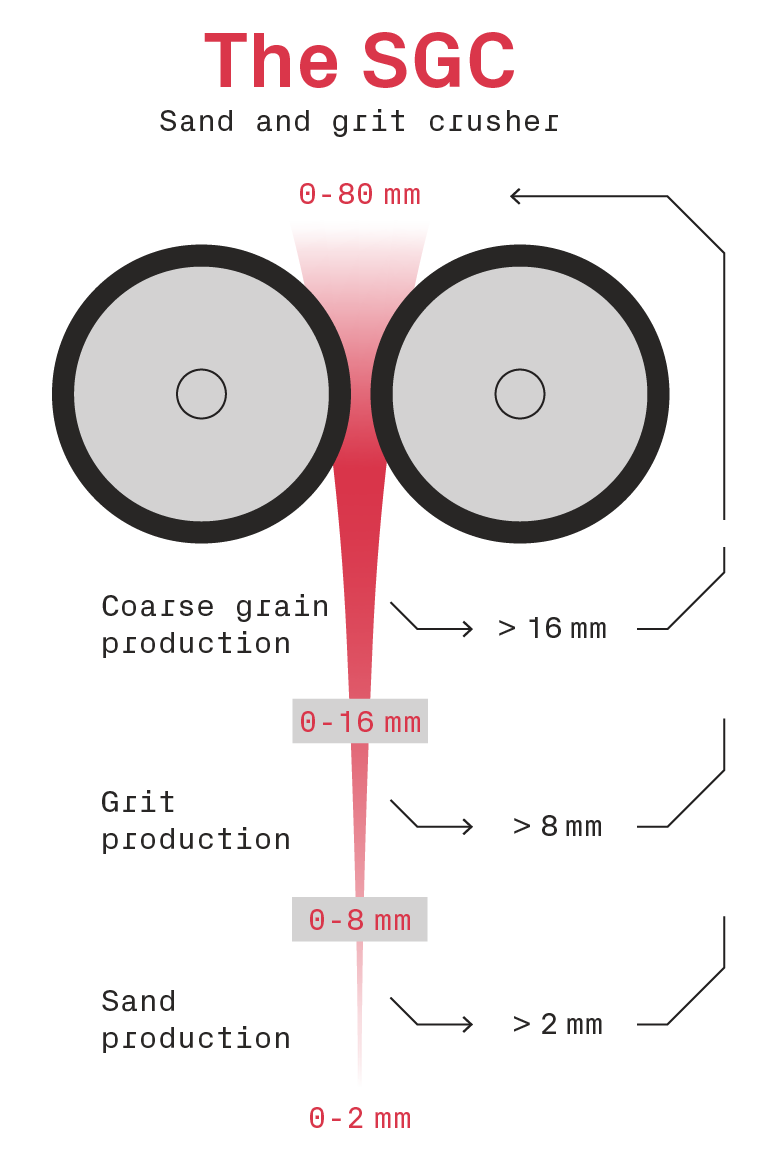

SGC – Sand and Grit crusher
Fractions at 0–45 mm feed grain
New Solutions for Small Grain Sizes
MORE TARGET GRAIN –
LESS FINES
Efficient production of grain sizes below 16 mm poses a real challenge. Energy consumption rises sharply, and unwanted fractions in the 0–2 mm range increase.
To avoid fines below 0.063 mm we have developed an efficient technology that produces grain sizes below 16 mm using two rollers. The SGC series delivers minimal fines and sand fractions – significantly increasing the yield of valuable target grain. The crusher also efficiently produces high-demand fractions in the 4–11 mm range.
Target Grain Size
DEFINABLE GRAIN SIZE THROUGHT OVERSIZE RECIRCULATION
Even in a closed-circuit process, the feed material is efficiently crushed to the target grain size without significantly increasing the fines fraction. This allows oversize fractions to be processed effectively, and the most in-demand fractions to be produced on target.
The SGC series stands out with low energy consumption per tonne produced and delivers high throughput relative to its footprint. The result: highly effective production of your target particle size.
THE ADVANTAGES AT A GLANCE
High productivity
Low fines generation
Hydraulic gap adjustment with overload protection
Efficient sand production
Efficient drive technology
Low energy consumption
Low dust generation
